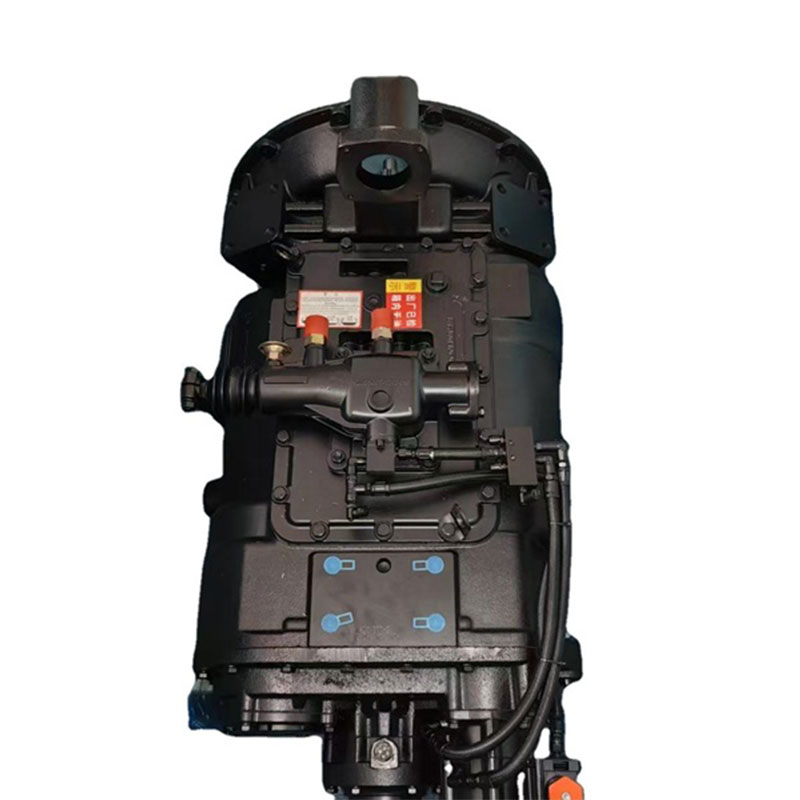

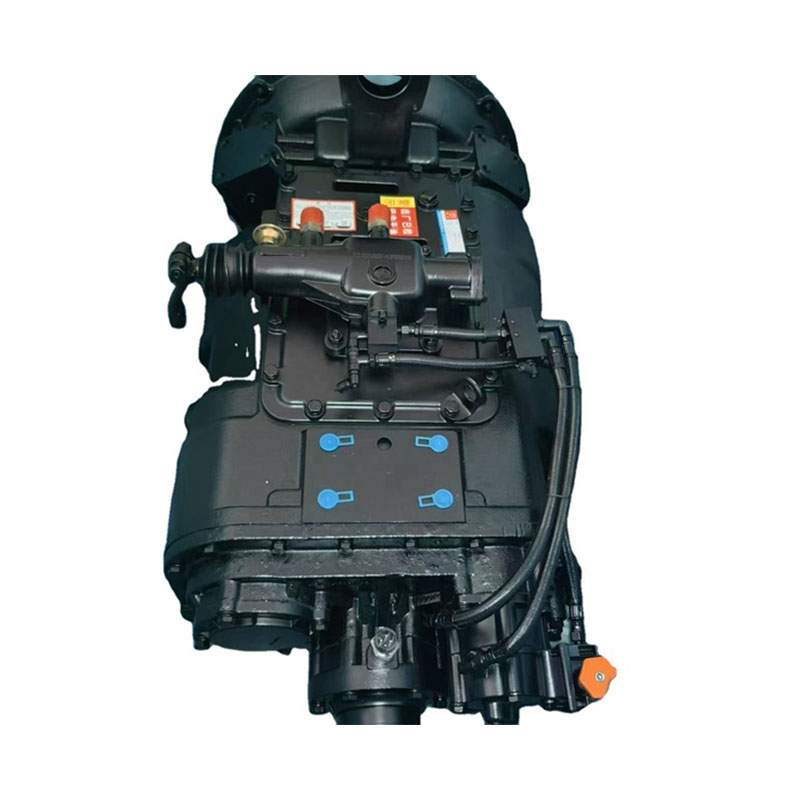

Automatic Repaired DSG Transmission

The Efficient Automatic Repaired DSG Transmission by Skyond is a heavy-duty 12-speed manual-automatic hybrid gearbox system designed specifically for high-load transportation environments. It combines the structural strength of a traditional manual transmission with the shifting efficiency of a dual-clutch automatic system, making it suitable for long-haul logistics, mining operations, and infrastructure transport applications.

This DSG Transmission Assembly Automatic Gearbox is engineered around the proven 12JS series architecture, widely used in heavy-duty commercial vehicles. Its dual-clutch design enables pre-selection of gears, reducing torque interruption during shifting and improving driving stability under continuous load conditions.

Designed for compatibility with HOWO T7H, C7H, C9H, as well as Shaanxi and Foton heavy-duty trucks, this system is widely used as a reliable replacement or remanufactured transmission solution for operational environments.

What Is an Automatic Repaired DSG Transmission?

The Automatic Repaired DSG Transmission is a dual-clutch automated gearbox designed to convert a heavy-duty 12-speed manual transmission into a semi-automatic shifting system.

Its working principle:

One clutch controls odd-numbered gears

Another clutch controls even-numbered gears

The system pre-engages the next gear while the current gear is still active

This results in near-continuous power delivery, making it ideal for commercial vehicles that require consistent torque output and frequent gear changes.

Product Specification

Core Structure and Engineering Concept

The Automatic Repaired DSG Transmission is built upon a dual-clutch gearbox architecture that separates odd and even gear sets into two independent clutch systems. This allows the transmission to pre-select the next gear before the current gear disengages, significantly improving shift efficiency.

Unlike conventional manual transmissions, this system minimizes power interruption during gear changes, which is especially important for:

Heavy cargo transport

Continuous uphill driving

High-frequency shifting environments

Long-distance freight logistics

The repaired and remanufactured version focuses on restoring the original mechanical integrity of the gearbox core, ensuring that all critical components operate within factory-level tolerances.

Key internal components include:

Gear sets and shafts (12JS structural base)

Synchronizer assemblies

Hydraulic control system

Dual-clutch mechanism

Transmission housing and alignment system

Each unit is processed through inspection, repair, and calibration stages to restore functional performance consistency.

Product Advantages

12-Speed High Torque Capacity Design

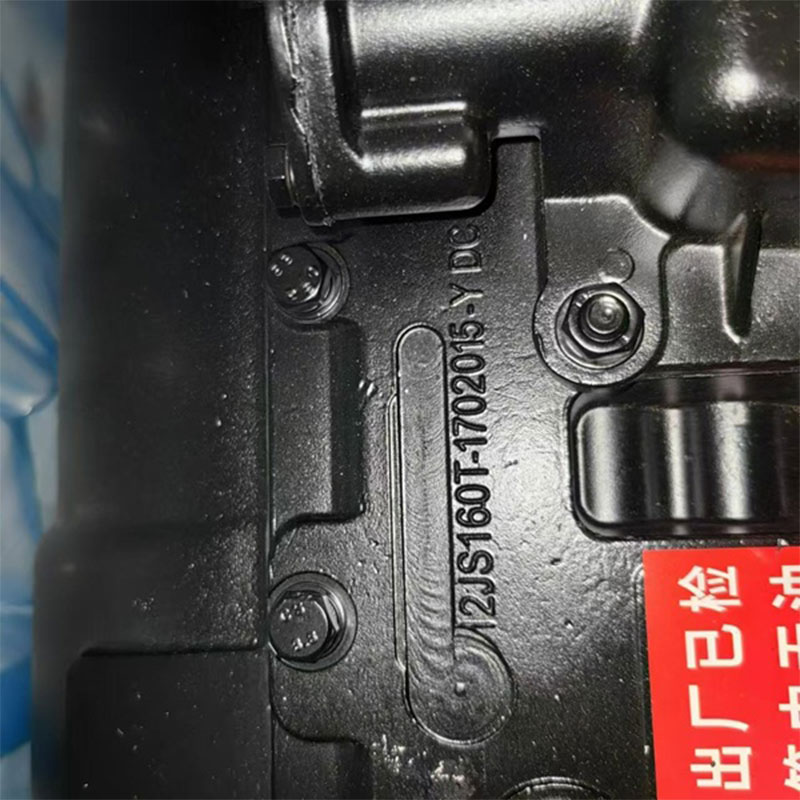

The 12JS160T, 12JS180T, and 12JS200T configurations are designed for high torque input conditions, supporting heavy-duty diesel engines commonly used in 11L–13L displacement categories.

Stable torque transmission under full load

Reduced risk of gear slippage

Improved thermal resistance under long operation cycles

Better drivetrain stability in mining and freight conditions

Rapid Dual-Clutch Shift Response

The dual-clutch system allows the gearbox to prepare the next gear before shifting occurs. This structure significantly improves response speed compared to conventional manual transmissions.

Benefits include:

Smoother acceleration on steep gradients

Reduced clutch wear over time

More stable driving experience under load variation

Improved fuel efficiency through optimized shift timing

OEM-Compatible Installation Structure

The Automatic Repaired DSG Transmission is designed with standardized mounting interfaces compatible with:

Shaanxi heavy-duty truck systems

MAN drivetrain structures

Foton heavy truck platforms

This ensures:

Direct installation without modification

Compatibility with existing driveline systems

Reduced maintenance downtime

Simplified replacement process

Calibrated Hydraulic Control System

The hydraulic valve body and solenoid system are tested and calibrated to align with standard ECU shift logic. This helps prevent abnormal transmission behavior such as gear hunting or delayed shifting.

Key outcomes:

Stable low-speed torque output

Consistent gear engagement timing

Improved coordination between engine and gearbox

Reduced transmission vibration during operation

Verified Mechanical Durability

Every repaired DSG transmission undergoes performance verification and structural evaluation. This ensures:

Proper casing integrity under load

Correct alignment of internal shafts

Reliable operation in vibration-heavy environments

Long service life under continuous use

Product Application Scope

This transmission system is widely used as a replacement or remanufactured unit for heavy-duty trucks equipped with:

Shaanxi drivetrains

MAN-based engine systems

Foton heavy truck platforms

It is especially suitable for vehicles operating in:

Long-distance logistics transportation

Construction material hauling

Mining and quarry operations

Heavy cargo and industrial freight

Typical engine compatibility ranges from 371HP to 540HP models, including commonly used platforms such as HOWO T7H and C7H series vehicles.

Why Quality Control Is Essential for Transmission Systems

Transmission systems operate under extreme mechanical conditions, including high temperature, continuous friction, and variable torque loads. Even minor defects in internal components can lead to serious operational failure.

Therefore, strict quality control is essential for every Automatic Repaired DSG Transmission to ensure reliability and performance stability.

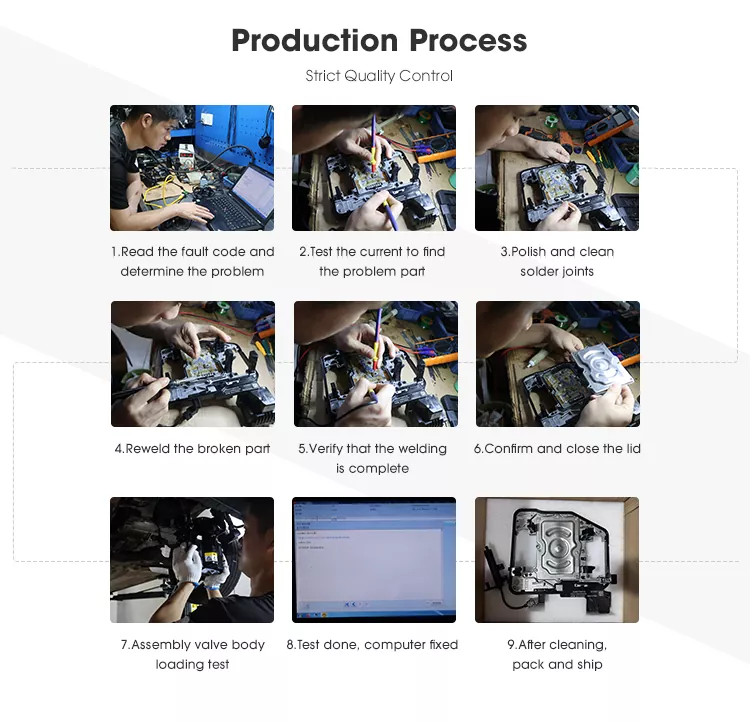

Key Quality Control Procedures Include:

1. Material hardness testing for gear components

2. Precision inspection of gear meshing

3. Seal integrity verification

4. Hydraulic pressure stability testing

5. Dynamic load simulation testing

6. Electronic signal and solenoid diagnostics

These procedures ensure that each transmission unit maintains stable performance under long-term industrial operation.

Why Choose Skyond

As a professional manufacturer and supplier in the heavy-duty truck parts industry, Skyond provides integrated production and supply capabilities for transmission systems and related components.

1. Industry Experience

With over 15 years of industry experience, the company has developed strong expertise in heavy-duty truck and construction machinery parts manufacturing, serving both domestic and international markets.

2. Self-Owned Manufacturing Facility

Skyond operates its own production base equipped with modern machinery and structured manufacturing workflows, ensuring:

Stable production output

Controlled manufacturing quality

Efficient large-order handling capability

3. Consistent Product Quality

Through standardized production processes and long-term industry cooperation, the company ensures compatibility and reliability across multiple heavy-duty vehicle platforms.

4. Comprehensive Product Range

In addition to Automatic Repaired DSG Transmission, the company supplies a wide variety of components, including engine parts, filters, brake systems, belts and tensioners, exhaust components, hydraulic systems, and transmission assemblies. This comprehensive offering allows customers to conveniently source multiple product categories from a single supplier.

5. Intelligent Warehouse System

A modern 10,000㎡ warehouse system supports structured storage, fast inventory retrieval, and efficient order processing for global distribution.

6. OEM & Custom Manufacturing Support

The company supports OEM production and customized solutions based on:

Technical drawings

Samples

Application requirements

This ensures flexibility for different market and vehicle needs.

7. Stable Global Supply Capability

With strong production capacity and inventory management, the company provides stable delivery cycles and supports long-term cooperation with international customers.

FAQ

Q1: What is the difference between 160T, 180T, and 200T models?

These model numbers represent torque capacity levels:1600Nm、1800Nm 、2000Nm The correct model should be selected based on engine power and total vehicle load requirements.

Q2: Is this DSG transmission compatible with HOWO T7H?

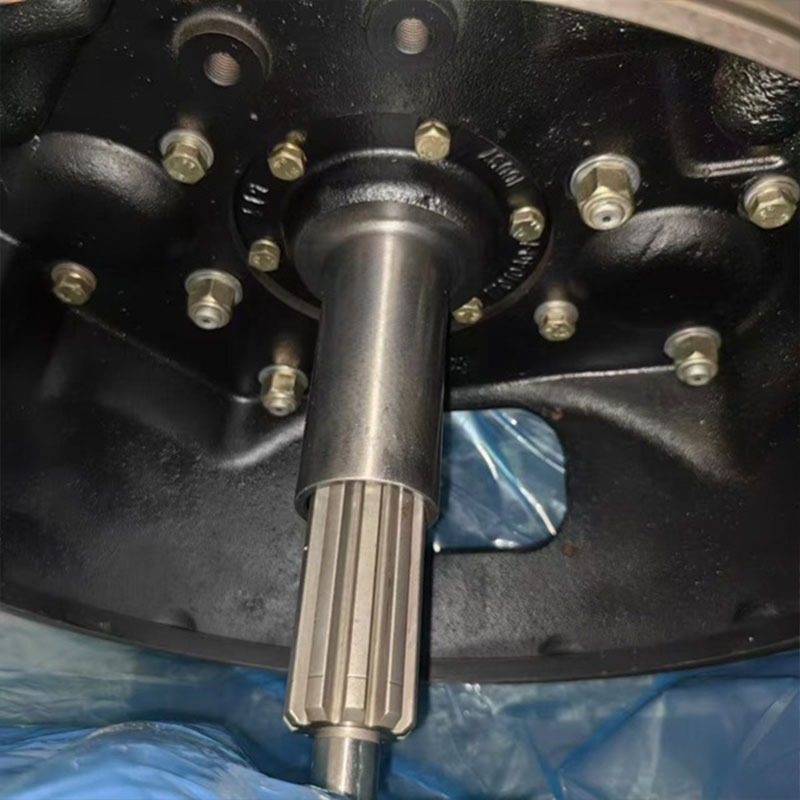

Yes, this 12-speed transmission system is commonly used in HOWO T7H and C7H platforms equipped with MAN or Sinotruk-based engines. However, verification of spline configuration and mounting alignment is recommended before installation.

Q3: Does the repaired unit include electronic components?

Yes, the DSG Transmission Assembly Automatic Gearbox includes pre-installed and tested control components such as solenoids and integrated control systems, allowing compatibility with existing vehicle wiring systems for easier installation.

Q4: What is the main advantage of a dual-clutch system?

The main advantage is continuous power delivery during gear shifting, which improves efficiency, reduces wear, and enhances driving stability under heavy load conditions.
