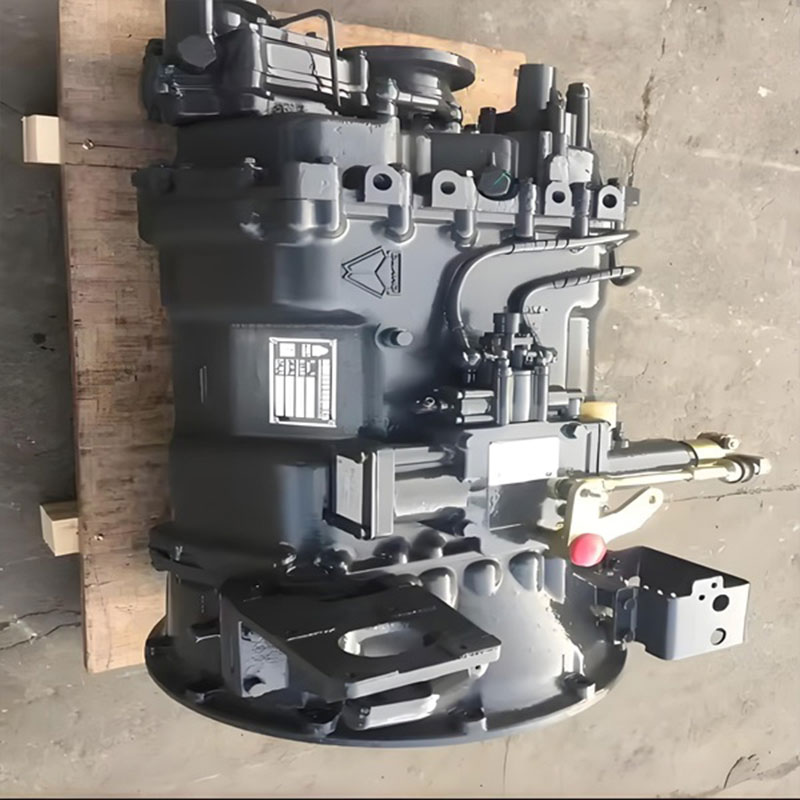

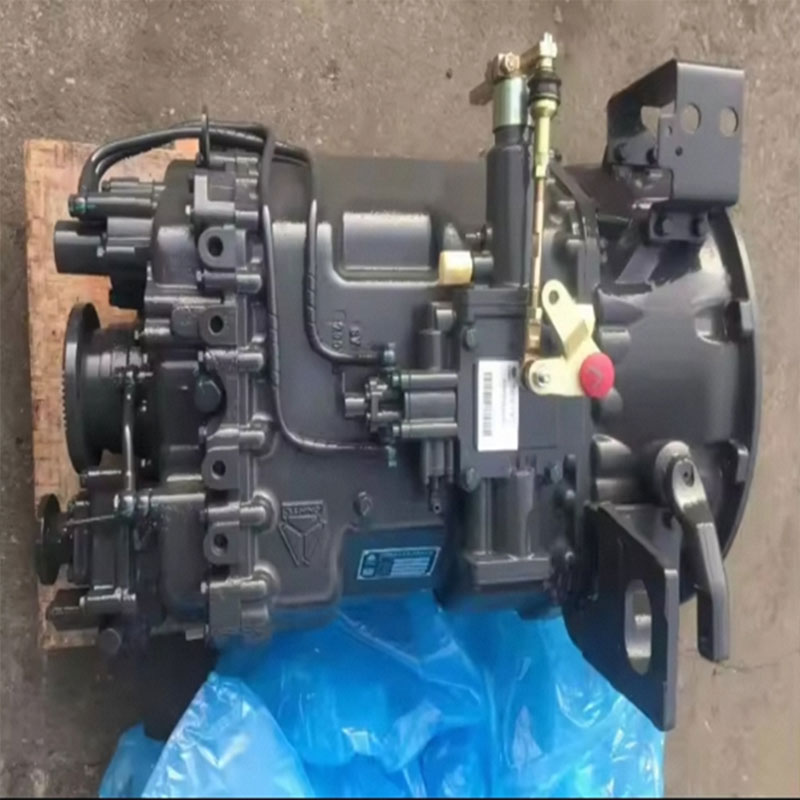

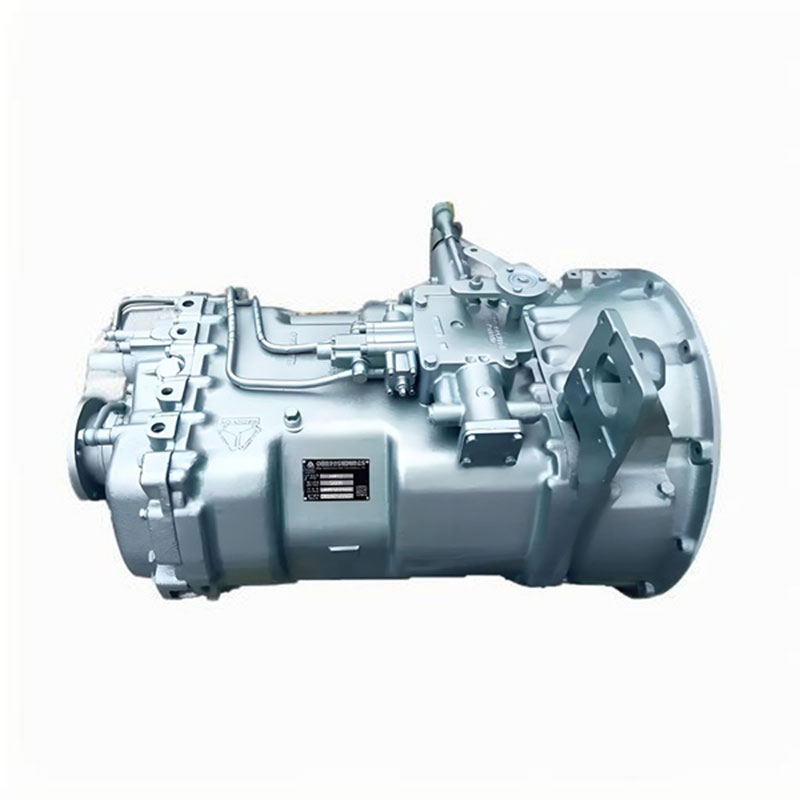

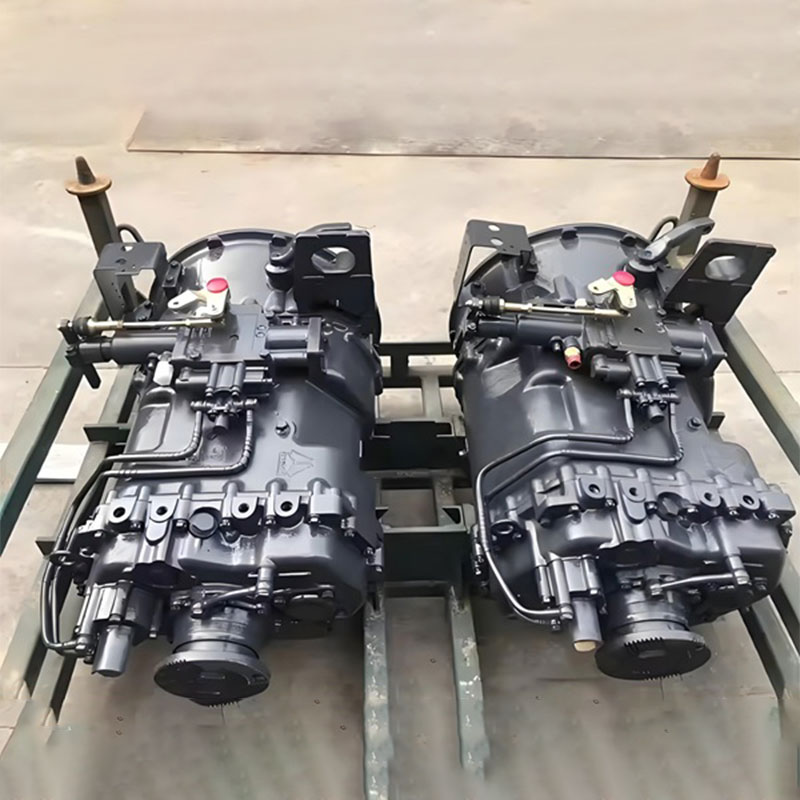

Reducer Gear Motor Worm Drive Gearbox

The Reducer Gear Motor Worm Drive Gearbox manufactured and supplied by Skyond is a high-performance transmission solution designed for different automotive and industrial applications. Engineered to handle heavy torque loads and continuous operation, this gearbox plays a critical role in regulating speed reduction and improving mechanical efficiency in truck drivetrains and machinery systems.

As part of SKD's professional supply chain for heavy-duty components, this product is carefully sourced from low-mileage, well-maintained vehicles. Each unit is inspected, tested, and requalified before delivery, ensuring that internal gear geometry, shaft alignment, and worm engagement performance remain within acceptable engineering tolerance.

These products are widely compatible with truck platforms such as HOWO and Shacman, making them a cost-effective yet reliable solution for fleet maintenance, machinery replacement, and industrial upgrades.

Product Specification

Product Overview

The Reducer Gear Motor Worm Drive Gearbox is engineered to convert high-speed, low-torque input into low-speed, high-torque output. This makes it essential for heavy-duty vehicles and industrial systems where controlled motion and torque amplification are required.

Its worm gear structure ensures:

· Smooth torque transmission

· High reduction ratio in compact space

· Self-locking capability (in specific configurations)

· Reduced vibration and noise during operation

Whether used in a HOWO truck transmission system or industrial conveyor machinery, this gearbox provides stable and predictable mechanical output under high load conditions.

Key Advantages

1.Excellent Mechanical Integrity

All sourced units come from carefully selected low-mileage vehicles or controlled industrial systems. Each gearbox undergoes mechanical inspection, ensuring that gear meshing surfaces and shaft alignment remain within safe operational limits.

2.High Surface Hardness Technology

Worm components are treated using advanced carburizing and heat treatment processes, achieving hardness levels of 56–62 HRC. This significantly improves wear resistance and extends service life under high torque conditions.

3.Stable and Precise Speed Reduction

The worm drive system ensures a consistent reduction ratio, delivering smooth power transfer. This reduces mechanical shock and improves operational stability in variable load environments.

4.Compact Structural Design

The aluminum alloy and cast iron housing design allows for a balance between strength and weight reduction. This compact structure makes installation easier in confined mechanical spaces.

5.Cost-Effective Industrial Solution

Compared with brand-new gearbox assemblies, these inspected units offer significant cost savings while maintaining dependable performance, making them ideal for fleet operators and repair workshops.

Material & Engineering Structure

The Reducer Gear Motor Worm Drive Gearbox is meticulously designed with high-quality materials and precision engineering to ensure reliability, efficiency, and long-term operational stability. Each component is carefully selected and processed to meet the rigorous demands of heavy-duty truck systems and industrial machinery.

1. Housing System

The housing of the gearbox is engineered to provide maximum structural integrity while optimizing weight and heat dissipation. Depending on the size and intended application, different materials are used:

Sizes 025–090: ADC12 aluminum alloy housing

Lightweight design reduces overall vehicle or machinery weight.

Excellent corrosion resistance ensures durability in humid, salty, or chemically aggressive environments.

High thermal conductivity improves heat dissipation, maintaining stable operating temperatures even under continuous load.

Sizes 110–150: HT200 cast iron housing

High-strength construction capable of withstanding heavy mechanical stress and torque loads.

Excellent wear and impact resistance for long-term use in industrial and construction applications.

Robust design maintains precise gear alignment under high-vibration conditions, ensuring reliable transmission performance.

This dual-material approach ensures that every gearbox, regardless of size, achieves the optimal balance between strength, weight, and thermal efficiency.

2. Worm Shaft Design

The worm shaft is the core component of the gearbox, responsible for transferring high torque and reducing speed efficiently. Advanced materials and precision engineering are applied to maximize durability and reliability:

1. Material: 20Cr alloy steel, known for its excellent strength and toughness.

2. Profile: ZI involute precision geometry ensures accurate meshing with the worm wheel, minimizing backlash and improving torque transmission.

3. Surface Treatment: Carburized and precision ground to achieve a hardened surface layer of 0.3–0.5 mm, providing high wear resistance and fatigue strength.

4. Benefit: These treatments and design choices ensure the worm shaft can withstand heavy, continuous loads without deformation, maintaining smooth, stable operation over extended periods.

3. Worm Wheel Composition

The worm wheel works in precise coordination with the worm shaft to reduce speed and increase torque. Materials and processing are carefully selected to enhance performance and longevity:

Material: CuSn10-1 tin bronze alloy, a premium wear-resistant material.

Features: High friction resistance and low coefficient of sliding friction, which reduces energy loss and heat generation during operation.

Benefits: Provides smooth gear engagement, minimizes thermal expansion deformation, and ensures consistent performance under variable load conditions.

Product Applications

The versatility of the Reducer Gear Motor Worm Drive Gearbox allows it to serve multiple sectors:

Heavy Truck Systems

HOWO dump trucks: High-torque reduction for transporting heavy loads.

Shacman logistics trucks:  Reliable transmission for long-distance freight applications.

Sinotruk transmission systems : Compatibility with standard heavy truck drivetrains.

Construction transport vehicles:Smooth and stable operation under harsh operating conditions.

Industrial Machinery

1. Conveyor belt systems – Precise speed reduction for continuous material handling.

2. Material handling equipment – Ensures smooth motion and torque control for heavy payloads.

3. Automated production lines – Maintains consistent performance for assembly and processing machines.

4. Mining machinery drives – Durable and wear-resistant under extreme load and abrasive conditions.

Engineering Equipment

Hydraulic auxiliary systems – Reliable torque conversion for hydraulic-driven devices.

Heavy lifting mechanisms – High torque support for cranes and industrial lifts.

Industrial torque conversion systems – Stable and precise speed reduction for specialized machinery applications.

This broad range of applications demonstrates the gearbox's adaptability, whether in heavy vehicles, industrial machinery, or engineering equipment requiring precise torque control.

What Services We Provide

Skyond provides comprehensive services to ensure customers receive reliable products and full technical support throughout the entire purchasing and application process.

Technical Pre-Sales Communication

Before production or shipment, we confirm all key technical parameters to ensure accurate product matching. This includes dimensions, torque requirements, installation compatibility, and operating environment conditions. Through this process, customers can select the most suitable Reducer Gear Motor Worm Drive Gearbox for their specific application with confidence and precision.

Sample Testing Support

We provide sample units for evaluation before bulk orders. Customers can conduct performance testing and compatibility checks in real working conditions, which helps reduce purchasing risks and ensures full confidence before large-scale procurement.

Strict Production & Quality Control

Mass production is only carried out after sample approval. Every stage of production is closely monitored by experienced technicians and quality control teams, ensuring consistent manufacturing standards and reliable performance across all gearbox units.

After-Sales Technical Support

We offer continuous after-sales service, including technical guidance, troubleshooting assistance, and repair or replacement solutions when necessary. Our goal is to ensure long-term operational stability and customer satisfaction.

Stable Supply & Fast Delivery

With advanced warehouse management and inventory control systems, we maintain strong supply capacity for both regular and urgent orders. This ensures fast processing, stable availability, and reliable global delivery performance.

Why Choose Skyond

Choosing a reliable supplier is essential to ensure the performance and longevity of your Reducer Gear Motor Worm Drive Gearbox. Skyond, with its extensive industry experience, advanced manufacturing processes, and comprehensive service system, has become a trusted partner for heavy-duty truck operators and industrial equipment users. Here are five key reasons to choose us:

Extensive Heavy Truck Industry Experience

We specialize in transmission systems for HOWO, Shacman, and other heavy-duty trucks, as well as industrial reduction equipment. Our expertise allows us to provide precise matching solutions and technical support for different vehicle models and operating conditions.

High-Standard Materials and Manufacturing

Key components are made of 20Cr alloy steel worms and CuSn10-1 wear-resistant bronze worm wheels. Through carburizing and precision machining, these parts achieve high hardness, excellent wear resistance, and extended service life.

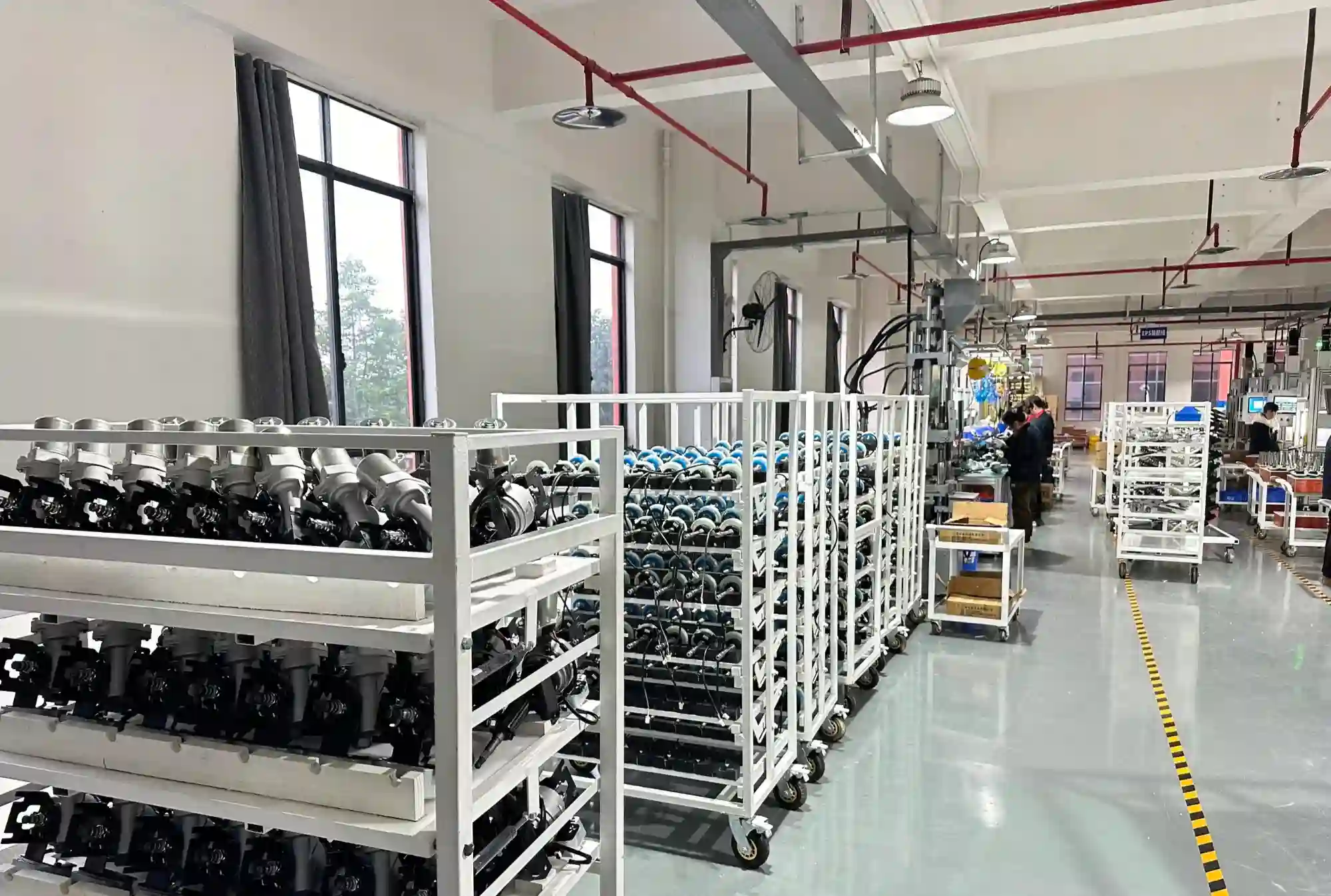

Intelligent Warehousing and Efficient Delivery

With over 10,000㎡ of modern intelligent warehouse space, we achieve precise inventory management and rapid order processing, significantly improving delivery speed and ensuring global supply reliability.

Cost-Effective Solutions with Comprehensive Support

We offer high-performance units at competitive prices while providing complete pre-sales confirmation and after-sales service, reducing overall maintenance costs and ensuring customer satisfaction.

FAQ

Q1: How does Skyond ensure gearbox quality?

A:Each Reducer Gear Motor Worm Drive Gearbox undergoes full mechanical inspection, including gear surface evaluation, rotational testing, and noise analysis to ensure stable operation without abnormal vibration.

Q2: What makes 20Cr worm material superior?

A:20Cr alloy steel provides high hardness after carburizing, enabling the worm shaft to withstand heavy torque loads while maintaining long-term dimensional stability.

Q3: Are these gearboxes compatible with HOWO trucks?

A:Yes. Many units are designed specifically for HOWO 371 dump trucks and related HW19710 transmission systems, ensuring strong compatibility.

Q4: What is the lifespan of a used gearbox unit?

A:Depending on load conditions and maintenance, inspected used units can achieve long service cycles comparable to remanufactured assemblies.

Q5: Can these gearboxes be used in industrial machinery?

A:Yes. They are widely applied in conveyor systems, mining machinery, and automated production equipment requiring stable torque reduction.
