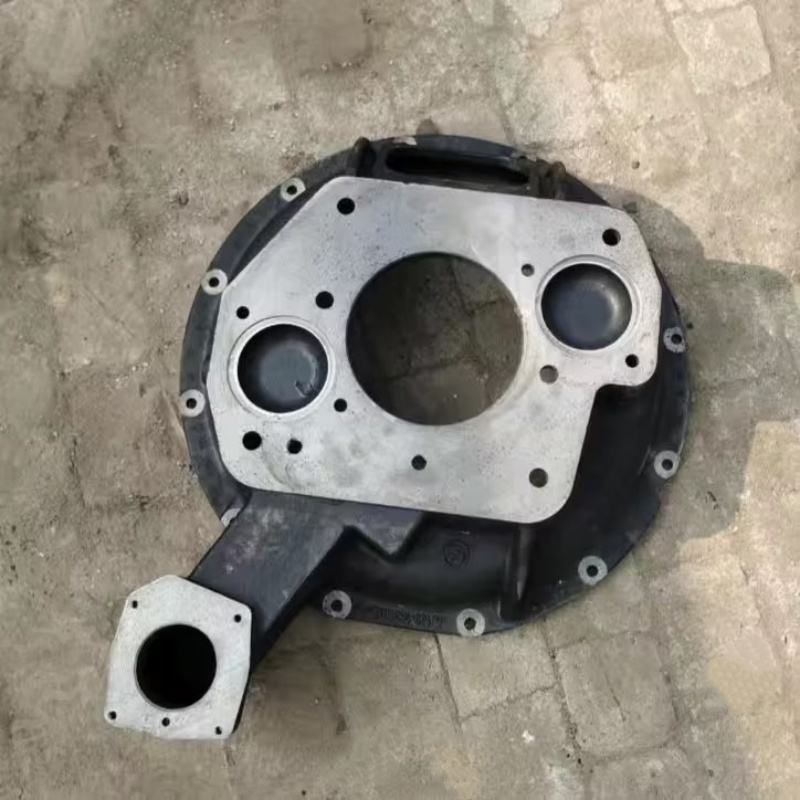

Shacman H3000 Clutch Bell Housing JS180-1601015-5

The JS180-1601015-5 Bell Housing Assembly plays a vital role in powertrain structural integrity and drivetrain alignment. By maintaining rigid, high-precision alignment between the engine crankshaft and the transmission input shaft, this Shacman H3000 clutch housing prevents shaft angular misalignment, reduces clutch disc wear, and protects the transmission front bearing from radial overload.

Manufactured in ISO9001-certified facilities using high-density cast iron alloy, the JS180-1601015-5 housing is built to endure immense torsional torque, engine vibration, and heavy clutch actuation loads. Replacing a cracked, warped, or bell-flange-damaged housing with a brand-new JS180-1601015-5 unit restores structural rigidity, eliminates clutch chatter, and prevents gearbox oil leakage along the flywheel housing interface.

Technical Specifications

Key Features and Benefits

• High-Strength Heavy Cast Iron: Engineery-cast alloy structure absorbs extreme drivetrain vibration and withstands heavy torsional loads under maximum payload acceleration.

• Precision-Machined Aligning Flanges: Features high-precision mating faces and dowel pin bores to guarantee exact concentric alignment between transmission input shaft and engine flywheel.

• Integrated Release Mechanism Mounts: Factory-machined pivot ball sockets and cross-shaft bores ensure smooth clutch release fork operation and minimal pedal effort.

• Direct OEM Alignment: Manufactured strictly according to OE specification JS180-1601015-5 for direct bolt-on installation on Fast JS180 series gearboxes and Shacman H3000 chassis.

Compatible Vehicle & Transmission Platforms

This JS180-1601015-5 clutch housing is designed for heavy-duty commercial truck drivetrains:

• Shacman Truck Series: Shacman Delong H3000, X3000, and F3000 heavy dump trucks, tractor units, concrete mixers, and specialized transport vehicles.

• Transmission Compatibility: Fast Gear 18-speed twin-countershaft manual gearboxes (including JS180 series models).

Symptoms of a Damaged Clutch Bell Housing

Fleet mechanics and transmission specialists should inspect or replace the JS180-1601015-5 bell housing when observing:

• Visible stress fractures, hairline cracks, or broken bolt mounting lugs along the engine or transmission mounting flanges.

• Persistent clutch vibration, noise, or rapid clutch disc wear caused by housing alignment distortion.

• Transmission input shaft bearing failure or oil seal leaks caused by shaft eccentricity.

• Severe clutch release fork binding or uneven release bearing wear due to damaged internal pivot mounts.

Packaging and Delivery Details

• Reinforced Heavy Packaging: Individually packed in heavy-duty 55x65x35 cm reinforced cartons or export wooden crates with foam cushioning to protect the 85 kg casting during long-distance transit.

• Fast Dispatch Channels: Short dispatch lead time of 3 to 7 days, supporting express air cargo for urgent VOR repairs or sea freight for volume stock.

• Flexible Order Terms: Low MOQ of 1 piece with secure payment methods including T/T, Western Union, PayPal, and Trade Assurance.

Frequently Asked Questions (FAQ)

Q1: What is the main function of the JS180-1601015-5 bell housing in Shacman H3000 trucks?

A: It encloses the clutch assembly, mounts the clutch release mechanism, and structurally joins the engine flywheel housing to the Fast transmission main case.

Q2: Does correct installation of this housing require alignment dowel pins?

A: Yes, proper positioning requires using the factory dowel pins on the engine flywheel housing to ensure precise input shaft centering and prevent clutch wear.

Why Choose Us

• Shacman & Fast Transmission Driveline Specialist: Premier exporter providing genuine and high-quality bell housings, clutch discs, pressure plates, release bearings, and gear sets for Shacman heavy trucks.

• Strict Quality Verification: Every JS180-1601015-5 bell housing undergoes casting integrity checks, flange flatness verification, and thread testing prior to packing.

• Reliable Global Shipping & Low MOQ: Fast 3-to-7-day dispatch with single-piece MOQ support helps keep your commercial transport fleet operating smoothly.
