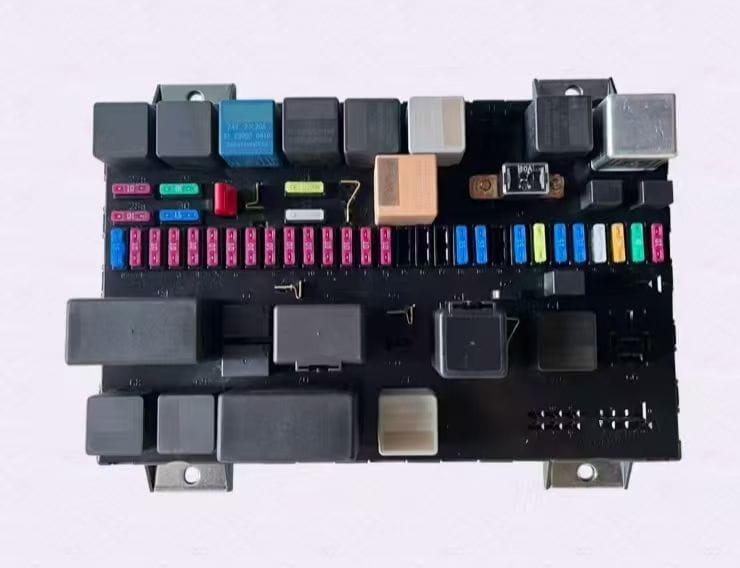

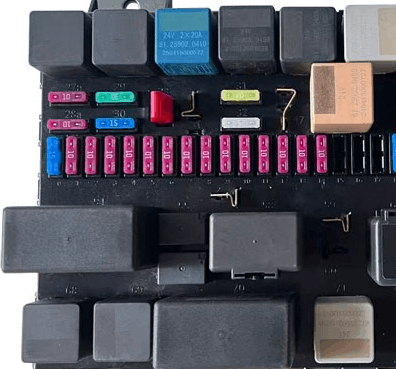

Shacman X3000 Truck Central Electrical Installation Board DZ93189582070

The DZ93189582070 Central Electrical Installation Board serves as the primary nerve center for the vehicle's low-voltage electrical, lighting, engine control, and cab power systems. By routing primary battery current through precision terminal circuits and protective fuses, this Shacman electrical installation board prevents short-circuit overloads, manages sensor signal distribution, and ensures stable electrical supply across all onboard electronics.

Manufactured in ISO9001-certified facilities using flame-retardant PC/ABS polymer housing and high-conductivity copper busbars, the DZ93189582070 board resists high internal cabinet heat, vibration, and mechanical wear. Replacing a burnt, melted, or corrosion-damaged central panel with a brand-new DZ93189582070 unit eliminates intermittent electrical glitches, restores stable sensor power feeds, and protects expensive ECU modules from voltage surges.

Technical Specifications

Key Features and Benefits

• High-Flame-Retardant Molded Casing: Built with heat-resistant engineering polymers to prevent thermal melting or fire hazards from overload heat.

• Precision Copper Terminal Grid: Heavy-gauge copper internal contacts deliver minimal resistance, preventing voltage drop across critical lighting and sensor circuits.

• Modular Plug-and-Play Design: Clearly labeled fuse slots, relay sockets, and harness pin connectors allow quick diagnostic testing and easy installation.

• Direct OEM Fitment: Manufactured strictly according to original specification DZ93189582070 for direct mounting into the Shacman X3000 cab dash structure.

Compatible Vehicle Applications

This DZ93189582070 central electrical board is engineered for heavy transport platforms:

• Shacman Truck Series: Shacman Delong X3000 and X5000 heavy tractor units, dump trucks, concrete mixers, and specialized long-distance cargo fleets.

Symptoms of a Failed Central Electrical Installation Board

Fleet technicians and commercial drivers should inspect or replace the DZ93189582070 electrical board when observing:

• Multiple electrical subsystems (such as headlights, wipers, horn, or sensor circuits) failing simultaneously despite intact individual fuses.

• Visible thermal discoloration, charring, or melted plastic around main relay contacts or fuse socket pin terminals.

• Intermittent electrical power cuts or flickering dashboard instrument clusters caused by loose internal copper busbar connections.

• Persistent ECU or sensor circuit fault codes triggered by erratic reference voltage distribution from the central junction box.

Packaging and Delivery Details

• Protective Export Packaging: Individually packed in a durable 20x20x5 cm export box with protective anti-static wrapping to safeguard delicate terminal pins during transit.

• Fast Dispatch Schedules: Short order turnaround via international air courier, air freight, or ocean container logistics.

• Flexible Order Support: Single-piece MOQ support backed by secure payment terms tailored for fleet maintenance or distributor supply.

Frequently Asked Questions (FAQ)

Q1: What is the main role of the DZ93189582070 electrical installation board on Shacman X3000 trucks?

A: It acts as the primary fuse, relay, and sensor signal junction panel inside the cab, distributing power safely from the main harness to various electronic systems.

Q2: Is this electrical panel direct plug-and-play with the standard Shacman X3000 wiring harness?

A: Yes, it is engineered to exact OEM dimensions and connector pinouts under part number DZ93189582070, ensuring seamless installation without harness modification.

Why Choose Us

• Shacman Electrical & Control System Specialist: Premier exporter providing genuine and original-quality central electrical boards, wiring harnesses, sensors, switches, relays, and ECU modules for Shacman fleets.

• Guaranteed Product Quality: Every DZ93189582070 electrical installation board undergoes strict electrical continuity testing, insulation resistance checks, and pin alignment verification prior to packaging.

• Reliable Global Shipping & Low MOQ: Fast dispatch schedules and single-piece MOQ support keep your commercial transport fleet operating safely with minimal downtime.
