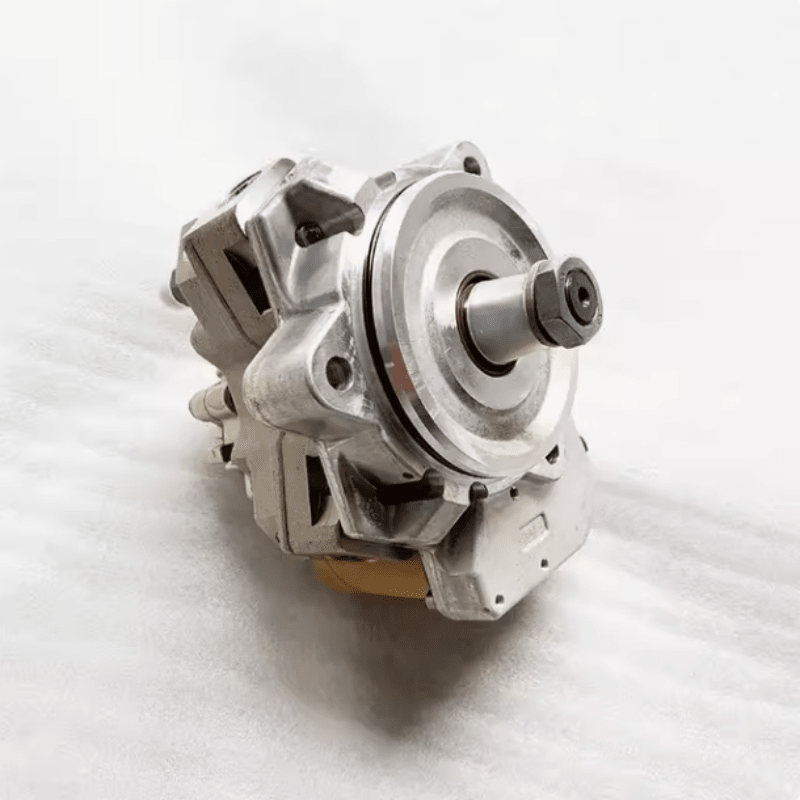

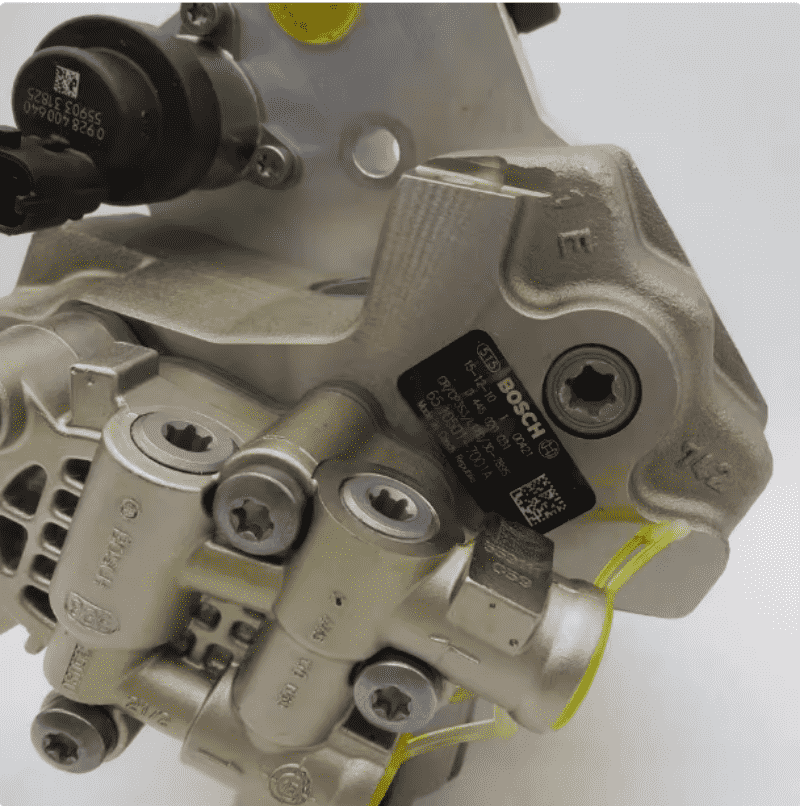

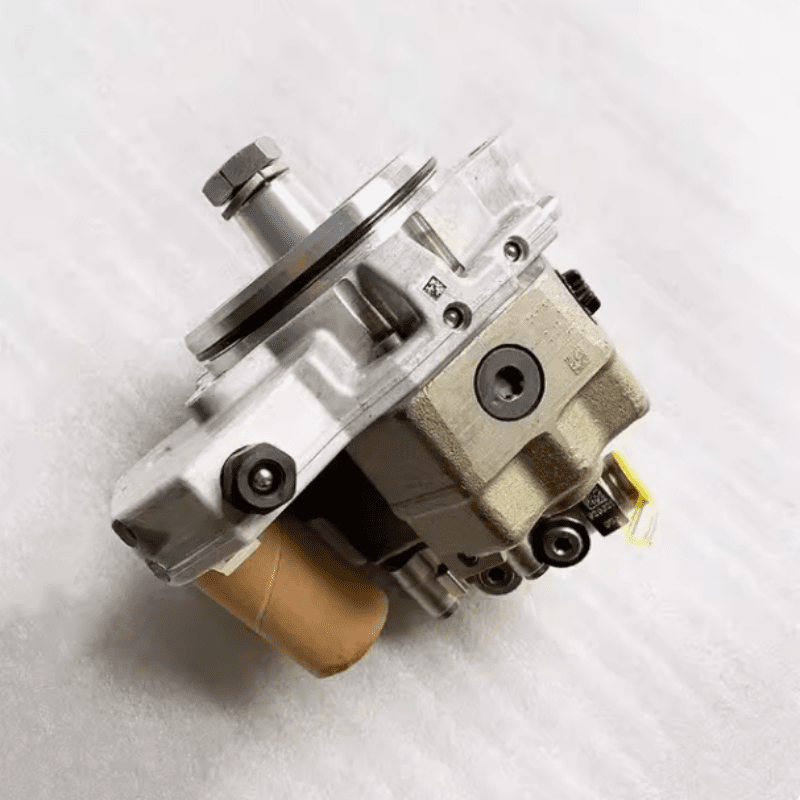

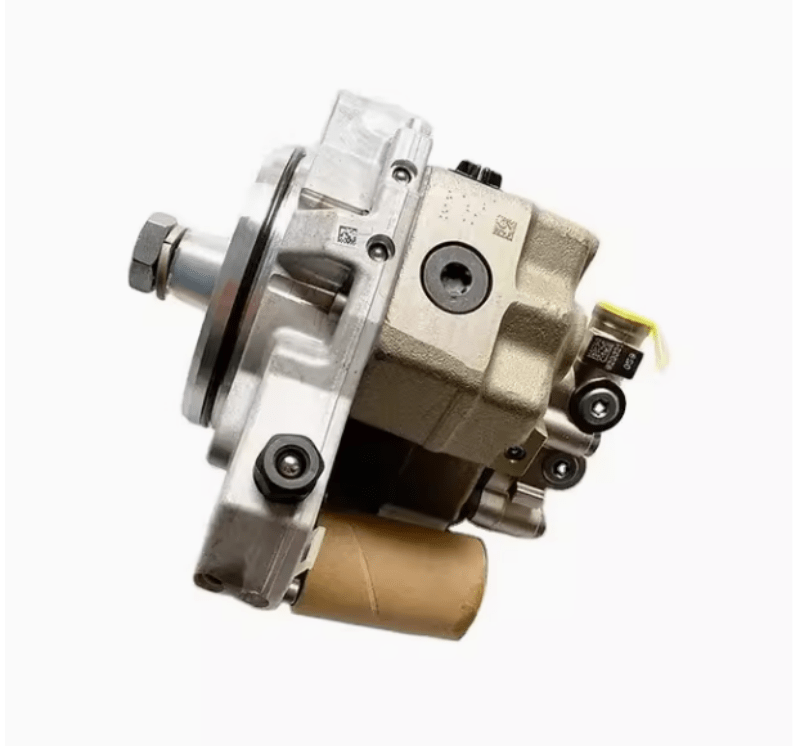

BOSCH Diesel High Pressure Pump 0445020031

The BOSCH Diesel High Pressure Pump 0445020031 is a common rail fuel pump supplied by brand Skyond to global buyers, manufactured in Jinan, China. It directly replaces the pump on Doosan and Daewoo DL08 engines found in DX300 and DX340 excavators, wheel loaders, and other heavy equipment, matching OEM numbers 65.10501-7001, 65.10501-7001A, and 65105017001. The CP3 platform enables precise ECU fuel control by separating pressure from timing. Its three-plunger design delivers smooth pressure, and its metering unit pressurises only needed fuel, reducing load and saving fuel. For owners, this means fewer breakdowns, lower costs, and consistent performance — restoring the machine to factory spec.

Key Specifications

What Does the BOSCH Diesel High Pressure Pump 0445020031 Do?

The BOSCH Diesel High Pressure Pump 0445020031 is the heart of the common rail fuel system on Doosan and Daewoo DL08 engines. Its job is straightforward but demanding: take low-pressure fuel from the tank, compress it to 1600 bar (over 23,000 psi), and deliver it to the common rail at a consistent pressure. From there, the injectors meter precise amounts of fuel into each cylinder at exactly the right moment.

When this pump wears out, the engine loses the ability to build and maintain that critical pressure. The result includes hard starting, power loss under load, reduced fuel efficiency, and fault codes indicating low rail pressure. Replacing a failing pump with the BOSCH Diesel High Pressure Pump 0445020031 restores the system's ability to reach the pressure the ECU demands for full power operation.

Understanding the CP3 Technology

The CP3 designation refers to Bosch's third-generation common rail pump platform. Unlike older mechanical injection pumps that both generated pressure and timed the injection events mechanically, the CP3 system separates these functions.

Pressure generation is mechanical; timing is electronic. The BOSCH Diesel High Pressure Pump 0445020031 functions purely as a pressure generator. It compresses fuel and sends it to the rail, but it does not determine when injection occurs. That decision is made by the ECU, which controls the injectors independently.

This separation delivers three concrete benefits:

Multiple injection events per stroke. The ECU can command pilot injections for smoother combustion, main injections for power, and post-injections for exhaust treatment in a single cycle. Older mechanical pumps could only deliver one injection event per stroke.

Starting pressure at low cranking speeds. The electronic metering unit allows the system to build rail pressure even when the engine is cranking slowly. This means faster, more reliable ignition compared to older mechanical systems that rely on engine speed to generate sufficient pressure.

Precise rail pressure control. The ECU continuously monitors rail pressure and adjusts the metering unit to maintain the target value. This ensures consistent fuel delivery regardless of engine speed or load.

Material and Build Quality

The BOSCH Diesel High Pressure Pump 0445020031 is engineered for the demands of heavy equipment operating in challenging environments. Internal components are manufactured with high-strength alloys, treated to resist wear from varying fuel qualities. The pump's construction accounts for the fact that fuel quality can vary significantly between regions. Water content, particulate contamination, and lubricity all affect component life.

The mounting flange and drive shaft dimensions are produced to original equipment standards. This ensures a perfect mechanical match for the DL08 engine block, preventing oil leaks or timing misalignments often associated with low-quality aftermarket pumps. When installed, the BOSCH Diesel High Pressure Pump 0445020031 meshes with the engine's gear drive system exactly as the original unit did.

Where This Pump Is Used

The BOSCH Diesel High Pressure Pump 0445020031 is specifically designed for Doosan and Daewoo DL08 engines. This is a 7.6L, 6-cylinder, inline, water-cooled, turbocharged diesel engine. These engines power a wide range of heavy equipment:

DX300 and DX340 series excavators

Wheel loaders

Other DL08-powered construction machinery

In these applications, consistent rail pressure is not just about engine performance. It directly affects hydraulic system operation. Excavators and loaders rely on engine power to drive hydraulic pumps. A drop in engine output translates directly to reduced digging force, slower cycle times, and lower productivity.

Signs Your Pump Needs Replacement

The BOSCH Diesel High Pressure Pump 0445020031 typically provides thousands of hours of service, but like any mechanical component, it eventually wears out. Common indicators include:

1. Hard starting. The engine cranks normally but takes extended time to fire, or fails to start entirely. This occurs when worn internal components prevent the pump from building the minimum pressure required for the injectors to operate.

2. Power loss under load. The engine runs at idle but loses power when digging, climbing, or carrying heavy loads. The ECU detects low rail pressure and derates engine output to protect the system.

3. Low rail pressure fault codes. Diagnostic tools display codes indicating rail pressure below target values. If filters and sensors are confirmed functional, the pump is the primary suspect.

4. Reduced fuel efficiency. The engine consumes more fuel than usual for the same work output. Inefficient pressure generation forces the system to work harder to maintain rail pressure.

Quality Control and Testing

Every BOSCH Diesel High Pressure Pump 0445020031 supplied by Skyond undergoes rigorous quality control before shipment. The testing regimen includes:

Electrical characteristics testing. Verifying the metering unit and other electronic components function within specifications.

Pressure resistance testing. Confirming the pump can generate and maintain the required 1600 bar pressure.

Leakage testing. Ensuring no internal or external leaks under operating conditions.

Durability testing. Simulating extended operation to verify component longevity.

Temperature testing. Verifying performance across high and low temperature ranges.

Each pump is tested multiple times using different test benches to ensure consistency. The installation and testing environment is maintained as a dust-free workshop to prevent contamination during assembly.

Why Source from Skyond?

Fifteen years of focused experience.

Skyond has been operating in the heavy-duty truck and construction machinery parts sector for 15 years, building deep familiarity with engine components including common rail fuel systems. This means faster identification of the correct part for your equipment and fewer ordering errors.

Located in Jinan, a major industrial hub.

Our factory and warehouse are based in Jinan, Shandong, with convenient transportation links and a strong industrial base. This allows us to maintain inventory of the BOSCH Diesel High Pressure Pump 0445020031 and ship most orders with short delivery after payment.

Ready for global delivery.

We export regularly to Russia, Central Asia, Southeast Asia, Africa, South America, and beyond. Our logistics team handles container loading, customs documentation, and routing to major ports.

OEM customisation capability.

Skyond provides tailored solutions according to customer drawings, specifications, or special requirements. Whether you need specific branding, custom packaging, or modified specifications, we can accommodate your needs.

Product range beyond the pump.

In addition to the BOSCH Diesel High Pressure Pump 0445020031, Skyond supplies engine parts, filters, brake pads, tensioner belts, shock absorbers, small excavators, and mini loaders. One supplier, multiple product lines, reducing your procurement workload.

Straightforward after-sales.

If a product arrives with a confirmed quality issue, we repair, replace, or refund. No arguments, no extended delays. We stand behind what we ship.

0445 020 031 Fuel Injection Pump Assembly
