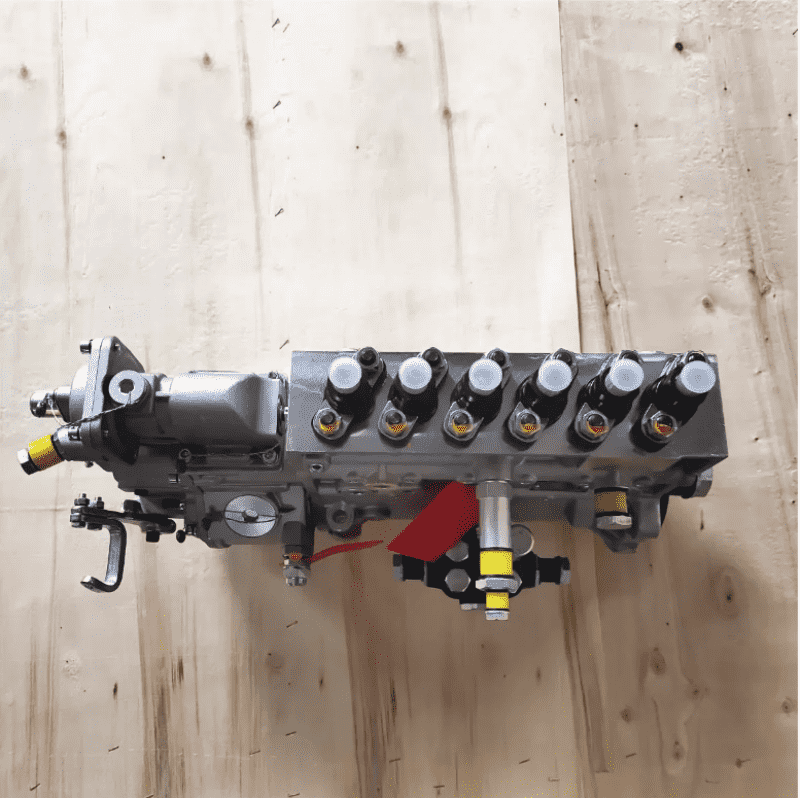

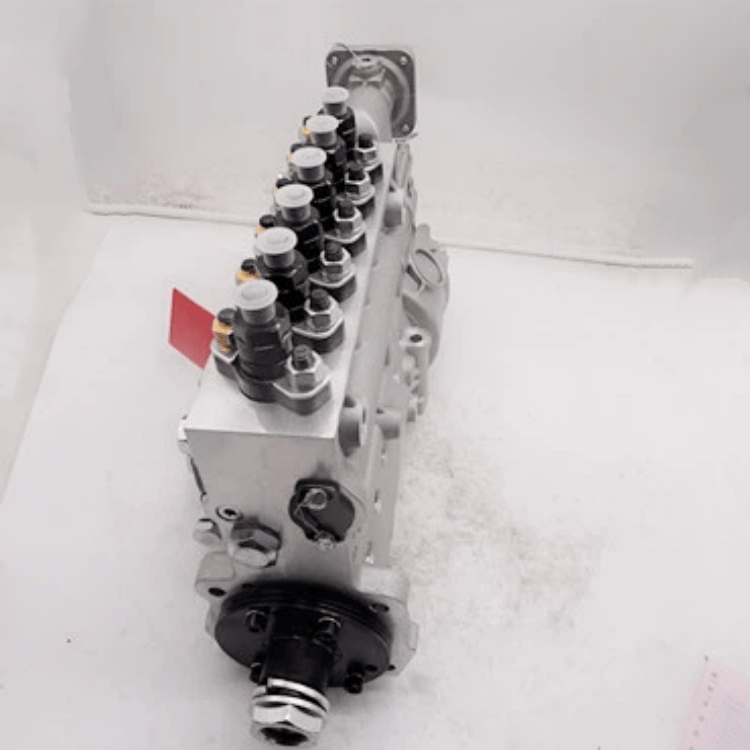

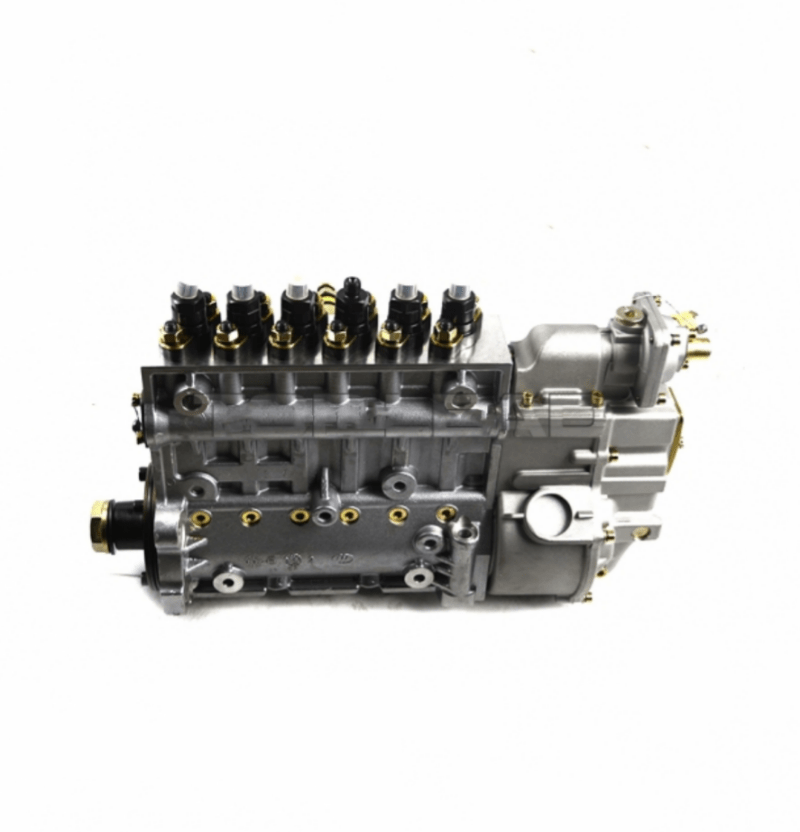

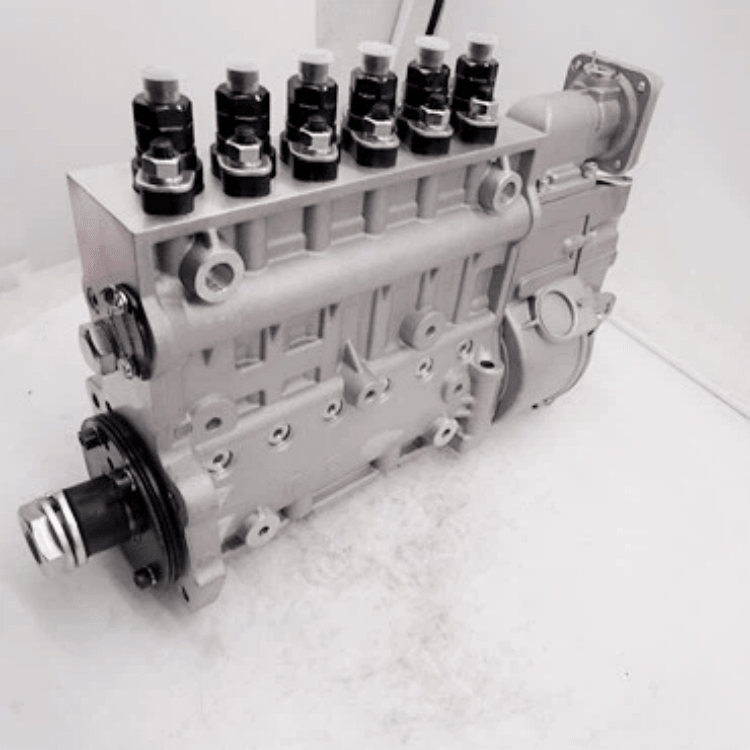

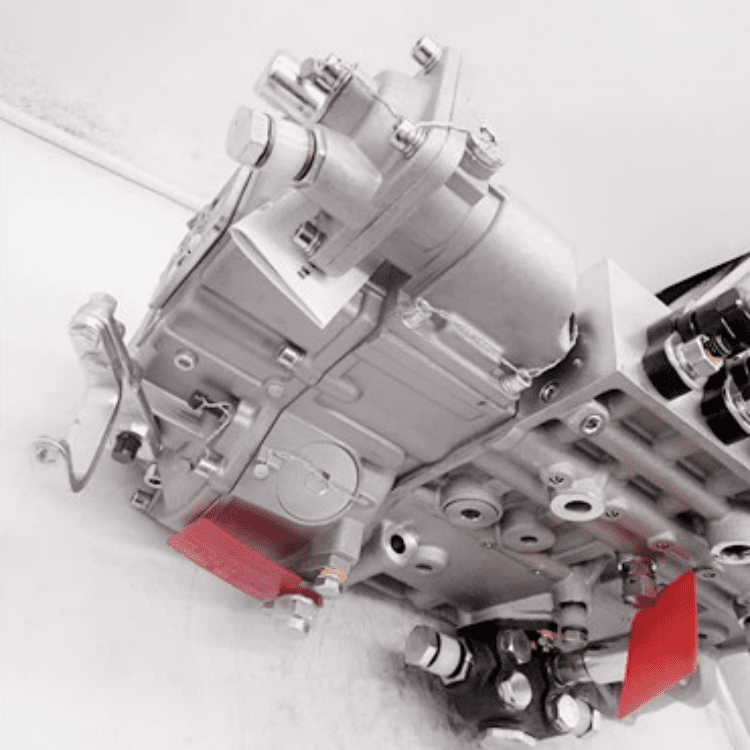

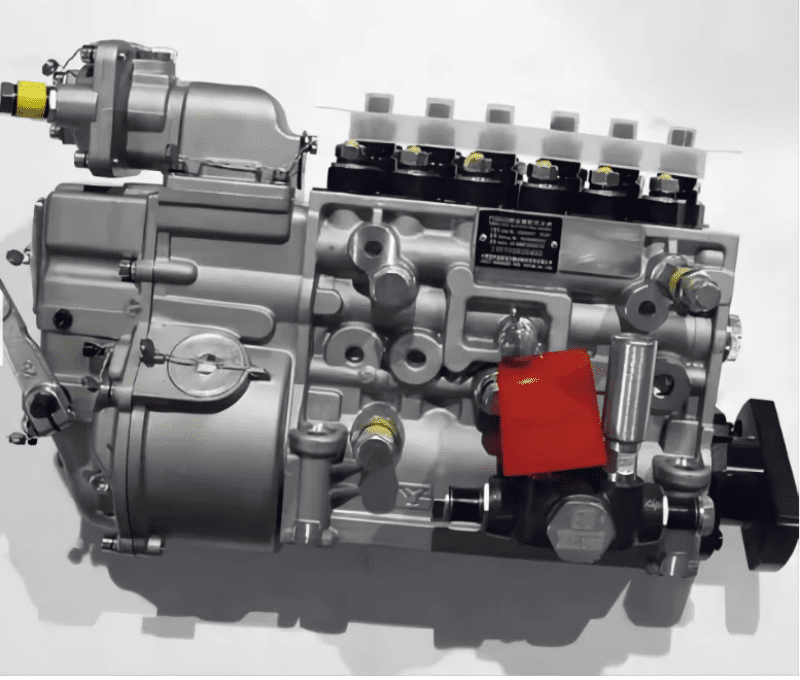

VG1246080342 Sinotruk HOWO D12.42 Fuel Injection Pump

The VG1246080342 Sinotruk HOWO D12.42 Fuel Injection Pump is a high-pressure common rail pump supplied by brand Skyond to buyers worldwide, manufactured in China. It is the primary fuel delivery component for Sinotruk HOWO and HOWO A7 trucks equipped with the D12.42 engine, a 420 HP, 11.596L inline-six diesel with DENSO electronically controlled common rail fuel system. The pump matches OEM number VG1246080342 and is designed for the Euro-III emission standard D12.42 engine.

What sets this pump apart is its role in the engine's fuel system. The Fuel Injection Pump pressurises diesel from the tank to the common rail at up to 1600 bar, enabling the ECU to command precise injection timing and quantity. For fleet owners and operators, this translates to consistent power delivery, lower fuel consumption per kilometre, and fewer unscheduled stops. Whether running long-haul routes or regional distribution, this pump keeps the engine performing to its rated 309 kW.

Key Product Advantages

Precise High-Pressure Calibration

The VG1246080342 Sinotruk HOWO D12.42 Fuel Injection Pump is specifically tuned for the D12.42 common rail architecture, delivering the exact pressure required for efficient diesel atomisation. This precision restores the engine's original starting performance and ensures a smooth idle without pressure fluctuations.

Durable Internal Componentry

Constructed with high-strength alloys, the internal plungers and delivery valves are designed to resist wear from varying fuel qualities. This robust construction extends the service life of the fuel system and reduces the frequency of expensive engine overhauls.

Optimised Fuel Economy

By maintaining consistent rail pressure, the pump enables the injectors to spray fuel in a fine mist for complete combustion. This results in improved thermal efficiency, helping to lower overall fuel consumption during long-distance logistics.

Original Factory Fit and Finish

The mounting flanges and drive gear interface are produced to original equipment standards. This ensures a direct bolt-on installation on the D12 engine block, preventing oil leaks and mechanical misalignment issues common with inferior aftermarket pumps.

The Heart of the D12.42 Fuel System

The VG1246080342 Sinotruk HOWO D12.42 Fuel Injection Pump operates as part of the DENSO electronically controlled common rail system. Unlike mechanical injection pumps that mechanically govern both pressure and timing, this pump functions as a high-pressure generator, with timing decisions handled by the ECU.

How it works?

Low-pressure fuel from the tank enters the pump, where internal plungers compress it to the target rail pressure — up to 1600 bar. The pressurised fuel is then delivered to the common rail, where it is stored and distributed to the injectors. The ECU continuously monitors rail pressure and adjusts the pump's metering unit to maintain the required level.

Why this matters?

Stable rail pressure means each injection event delivers the precise fuel quantity the ECU commands. The result is consistent power output, lower emissions, and protection against engine knock or overheating under heavy loads.

DENSO system

advantage The DENSO system on the D12.42 is possible to achieve five fuel injections per cycle, allowing for pilot injections (smoother combustion), main injections (power), and post-injections (exhaust treatment) in a single cycle that is something older mechanical systems cannot achieve.

specifications

Application

The VG1246080342 Sinotruk HOWO D12.42 Fuel Injection Pump is specifically designed for the Sinotruk D12.42 engine.

This engine powers Sinotruk HOWO, HOWO A7, and other heavy-duty truck series. In these applications, consistent fuel pressure is not just about engine performance and it directly affects haulage capacity, hill-climbing ability, and overall trip efficiency.

When Your Fuel Injection Pump Needs Replacing?

The VG1246080342 Sinotruk HOWO D12.42 Fuel Injection Pump typically delivers thousands of hours of service, but like any precision component, it eventually wears out. Common indicators include:

Engine fails to start

Possible causes include air in the fuel system, clogged filters, or internal pump wear preventing pressure build-up.

Engine lacks power under load

The engine idles normally but loses power when climbing or carrying heavy loads. The ECU detects low rail pressure and reduces output to protect the system.

Unstable engine speed

Internal precision components may be sticking, causing erratic fuel delivery.

Increased fuel consumption

The engine burns more fuel for the same work output. Inefficient pressure generation forces the system to work harder.

Engine runaway (uncontrolled speed). The governor or plunger may be stuck in the maximum fuel delivery position, an immediate shut-down situation requiring professional service.

Quality Control and Testing

Every VG1246080342 Sinotruk HOWO D12.42 Fuel Injection Pump supplied by Skyond undergoes rigorous quality control before shipment:

1. Pressure calibration testing. Each pump is tested on a dedicated test bench to verify it achieves and maintains the required rail pressure across the operating range.

2. Leakage testing. Internal and external seals are checked under pressure to ensure no fuel or oil leaks.

3. Plunger and delivery valve inspection. Critical wear components are inspected for dimensional accuracy and surface finish.

4. Mounting interface verification. Flange and drive gear interfaces are checked against OEM specifications to ensure bolt-on fitment.

5. The testing environment is maintained to prevent contamination during assembly, and each pump is shipped with documentation confirming it has passed factory inspection.

Why Source from Skyond?

Fifteen years of focused experience. Skyond has been operating in the heavy-duty truck parts sector for 15 years, with deep expertise in Sinotruk fuel systems. This means faster identification of the correct part and fewer ordering errors.

Located in Jinan, Sinotruk's home city. Our factory and warehouse are based in Jinan, giving us direct access to accurate specifications and enabling fast inventory turnover and most orders ship within 3-7 days after payment.

Ready for global delivery. We export regularly to Russia, Central Asia, Southeast Asia, Africa, South America, and beyond, with experienced logistics teams handling container loading and customs documentation.

Comprehensive product range. Beyond the VG1246080342 Sinotruk HOWO D12.42 Fuel Injection Pump, Skyond supplies engine parts, filters, brake components, and more from one supplier, multiple product lines.

Customisation capability. Skyond provides tailored solutions according to customer drawings, specifications, or special requirements.

Straightforward after-sales. 3-month warranty on the pump. If a confirmed quality issue arises, we repair, replace, or refund.

FAQ

Q1: Which engines and vehicles is the VG1246080342 Sinotruk HOWO D12.42 Fuel Injection Pump compatible with?

It is compatible with the Sinotruk D12.42 engine (420 HP, 11.596L, inline-6), fitted to HOWO, HOWO A7, and other heavy-duty Sinotruk truck series. Always confirm your engine model before ordering.

Q2: What is the maximum rail pressure this pump can deliver?

The pump is calibrated to deliver up to 1600 bar, matching the original DENSO system specification for the D12.42 engine.

Q3: Should I replace other parts when installing a new pump?

Yes. We recommend replacing the O-ring (VG1246080028), Woodruff key (R61540080312), flange (VG1246080056), and injection pump gear (VG1246080029) at the same time to ensure proper sealing and drive engagement.

Q4: What is the warranty period?

Skyond provides a 3-month warranty on the Fuel Injection Pump.

Q5: How long does delivery take?

Most orders ship within 3-7 days after payment confirmation.

Procurement Recommendations

Confirm the part number. Ensure the part number is VG1246080342. This pump is specifically calibrated for the D12.42 engine (420 HP). Ordering by vehicle model alone carries risk — always verify against the engine specification.

Replace associated components simultaneously. When replacing the D12.42 Fuel Injection Pump, we recommend replacing the following related parts at the same time. These components wear alongside the pump and replacing them together prevents premature failure of the new pump:

Consider genuine or OEM-grade quality. Skyond supplies pumps manufactured to original equipment specifications. Inferior aftermarket pumps often use lower-grade materials or lack proper calibration, leading to shorter service life and potential engine damage.

Bulk purchasing. For fleet operators requiring multiple units, volume discounts apply. Contact us for a quotation based on your order quantity.
