Heavy-Duty Truck Exhaust Manifold Failure Analysis and Selection Guidelines

The exhaust manifold in a heavy-duty truck powertrain performs three critical functions: exhaust gas routing, vibration buffering, and thermal insulation. Its operating environment subjected to high temperatures, cyclic thermal loads, and multi‑axis vibrations and demands well‑engineered structural design and precise manufacturing.

 1. Failure Mode Classification

The service life of an exhaust manifold is primarily affected by three categories of factors:

These factors often combine under heavy‑duty conditions. Mining dump trucks face high vibration plus high temperature; coastal logistics trucks endure high humidity plus thermal cycling. Strengthening only one aspect rarely solves the overall problem.

2. Rigid vs. Flexible Decoupling Design

Conventional exhaust pipes use rigid connections, relying solely on the material's inherent strength to withstand vibration and thermal stress. This approach may suffice for light‑duty trucks or short‑haul operation. However, heavy‑duty engines have larger displacements and broader vibration spectra, making the natural frequency of a rigid structure more easily excited—resulting in stress concentration at welds.

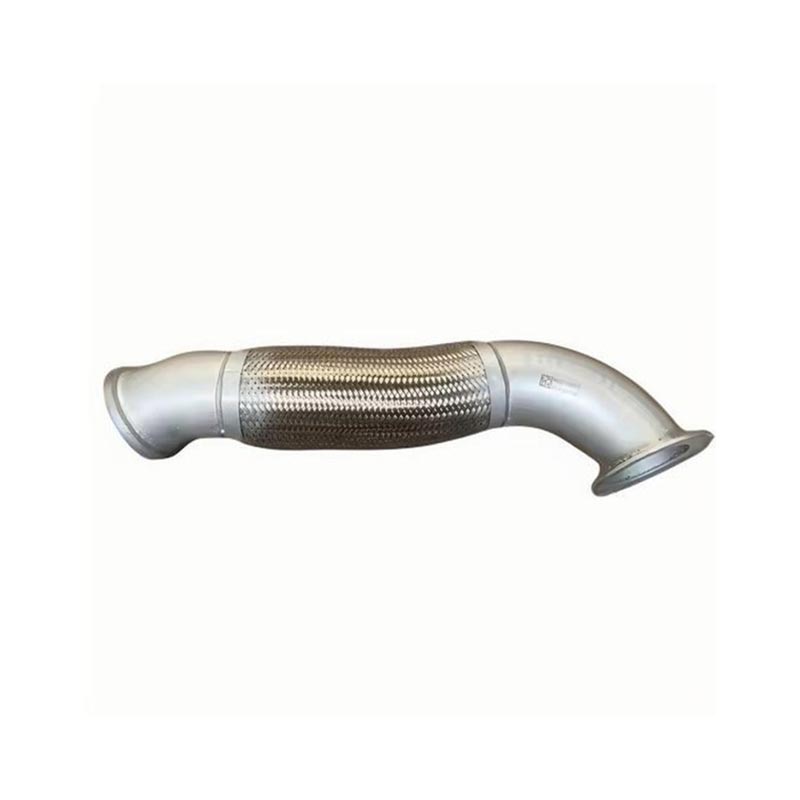

Flexible decoupling offers an alternative engineering solution. By incorporating a flexible section into the piping, the system stiffness is modified to shift the resonant frequency away from the engine’s excitation band. Skyond has designed an interlocking flexible joint for its WG9731540002 Exhaust Pipe that features a spiral metal strip interlocking structure. It provides axial extensibility and angular articulation, effectively attenuating dynamic loads transmitted to the welds.

Key differences between the two approaches:

3. Manufacturing Precision Determines Installation Quality

Replacing an exhaust manifold involves labour costs. Dimensional inaccuracies can cause misalignment of flange holes and poor sealing, leading to additional maintenance work. WG9731540002 Exhaust Pipe is formed using tooling strictly based on Sinotruk OEM data. Mounting points and interface specifications match the original parts exactly, enabling direct installation without cutting or reworking.

In terms of materials, this product uses heat‑resistant stainless steel. The pipe wall is laser‑cut and robot‑welded, with thickness uniformity controlled within ±0.1 mm—which directly contributes to even thermal stress distribution at the welded joints.

4. Performance Validation for Different Operating Conditions

This model has been exported in bulk to multiple regions, with specific validation conducted for various climatic environments:

Russia and Central Asia (extreme cold): Material toughness remains stable at ‑40°C; no brittle fracture during cold starts.

Southeast Asia (high humidity): Surface corrosion resistance meets requirements under salt‑spray testing.

Africa and South America (high temperature, dusty): Pipe deformation stays within acceptable limits under continuous heavy loads.

5. Selection Recommendations

For logistics fleets, repair shops, and engineering procurement buyers, three key criteria should be considered when selecting an exhaust manifold: whether it provides vibration decoupling, whether dimensions match the original equipment, and whether the material has been verified for the intended operating conditions. Skyond’s  WG9731540002 Exhaust Pipe offers documented design and test data across all three dimensions, making it a viable replacement option for Sinotruk series trucks.
